产品介绍
Product Description
General description

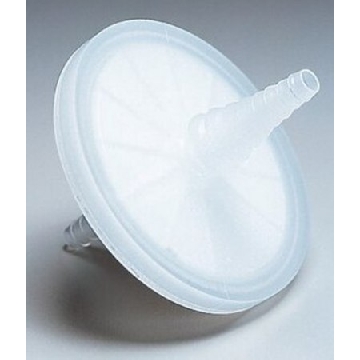

Millex™-FG/FH/FA真空线路保护器是一种非无菌、非热原过滤装置，由聚丙烯制成，带有双向过滤支撑滤网。直径50 mm、0.2 μm的无层压PTFE疏水膜被密封到筛网支架之间的装置内。该过滤器主要用于空气或气体的直通式过滤，用于从加压密闭容器排出空气、过滤非水液体，如HPLC溶剂，并作为真空源和真空容器之间的防潮屏障。Millex®-FG/FH/FA真空线路保护器可承受至少10次的反复高压灭菌。
Legal Information
Fluoropore is a registered trademark of Merck KGaA, Darmstadt, Germany
Millex is a trademark of Merck KGaA, Darmstadt, Germany
技术参数
Specifications
| Quality Level | 400 |
| material | PTFE membrane,polypropylene housing |
| sterility | non-sterile |
| sterilization compatibility | autoclavable compatible |
| product line | Millex™ |
| feature | hydrophobic |
| manufacturer/tradename | Millex™ |
| parameter | ≥20 L/min air flow rate at 5 psi,32 L/min air flow rate at 5 psi (typical),4.1 bar max. inlet pressure (60 psi) |
| technique(s) | analytical sample preparation: suitable,gas filtration: suitable,vent filtration: suitable |
| diam. | 50 mm |
| filtration area | 19.6 cm2 (3 in2) |
| housing diam. | 62 mm |
| inlet to outlet H | 72 mm |
| matrix | Fluoropore® |
| pore size | 0.45 μm |
| input | gas sample type organic solution(s) |
| fitting | inlet stepped hose barb (with Female Luer slip interior), outlet stepped hose barb (with Female Luer slip interior) |
| shipped in | ambient |
| storage temp. | no temp limit |
